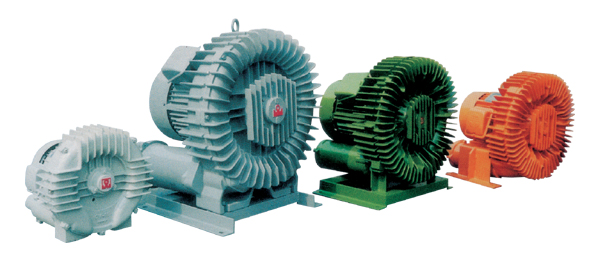

특징

고압을 생산하는 다단 Turbo 또는 Roots Blower에 비하면 생산원가가 저렴하고 설치가 간편하며 외형이 작고, 소음이적고 수명이 긴 특징이 있고 용도가 다양하다.
If compare Vortex Blower with other blower then find low cost, compact,low noise and long life.

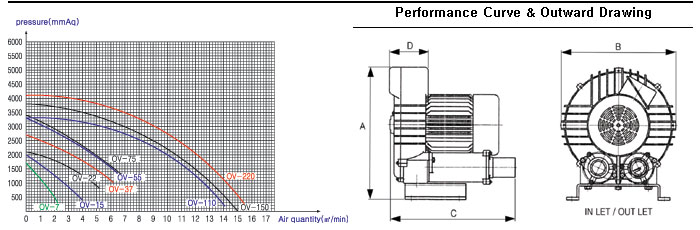

Specification & Dimension

Model	Motor	Max Air Quantity (㎥/min±10%)		Max Pressure (mmAq±10%)		A	B	C	D	In Let	Out Let
		60Hz	50Hz	60Hz	50Hz
OV-5	1(0.75)	2.1	1.9	-1,700	-1,300	338	306	346	100	Φ38/50	Φ38/50
OV-15	2(1.5)	4.4	3.5	-2.050	-1,400	415	360	380	122	50A	50A
OV-22	3(2.2)	5.2	4.1	-2,200	-1,600	441	402	407	128	50A	50A
OV-37	5(3.7)	6.5	5.5	-2,800	-2,000	495	460	416	142	65A	65A
OV-55	7.5(5.5)	6.6	5.6	-3,200	-2,500	584	499	480	165	65A	65A
OV-75	10(7.5)	7.0	5.6	-3,500	-2,600	584	499	480	165	65A	65A
OV-110	15(11)	15.0	16.0	-3,300	-2,500	674	563	600	228	100A	100A
OV-150	20(15)	17.0	16.5	-3,600	-2,800	674	563	600	228	100A	100A
OV-220	30(22)	17.5	16.5	-4,200	-3,200	674	563	703	228	100A	100A

※ 이외의 제품은 주문에 한하여 제작합니다.

Turbo Fan

FEATURES Rigid, Construction, High Efficiency, High Speed.

APPLICATIONS Boilers, Foundries, Woodworking Shops, Dust Collectors, Chemicaland Other Industries.

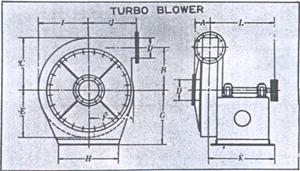

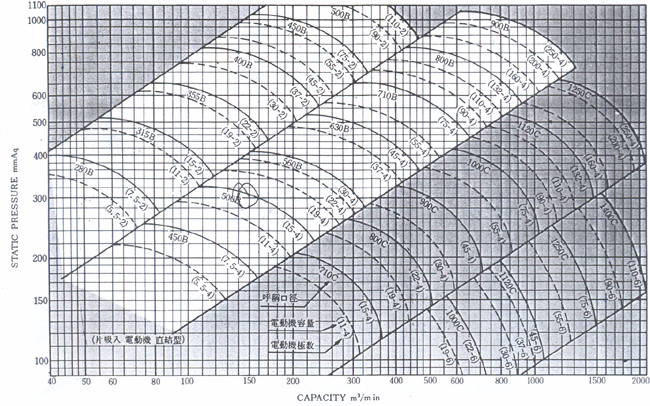

Dimensions

FAN SIZE	A	B	D	E	F	G	H₁	H₂	J	K₁	K₂	L	M	BRG
OTC- 280B OTC- 315B OTC- 355B	280 315 355	200 224 250	280 315 355	160 180 200	300 355 375	315 355 400	400 450 500	500 560 630	530 580 630	340 380 424	390 436 488	1060 1250 1320	530 600 670	6308 6309 6310
OTC- 400B OTC- 450B OTC- 500B	400 450 500	280 315 355	400 450 500	220 240 270	425 475 530	450 500 560	560 630 710	710 800 900	690 760 820	480 540 600	552 620 690	1450 1700 1850	750 850 950	6311 6312 6313
OTC- 560B OTC- 630B OTC- 710B	560 630 710	400 450 500	560 630 710	300 330 360	600 670 750	630 710 800	800 900 1000	1000 1120 1250	890 960 1030	676 756 850	778 870 978	1850 1850 2000	1060 1180 1320	6314 6315 6316
OTC- 800B OTC- 900B	800 900	560 630	800 900	400 440	850 950	900 1000	1120 1520	1400 1600	1180 1310	966 1084	1108 1242	2400 2650	1500 1700	6318 6320
OTC- 710C OTC- 800C OTC- 900C	710 800 900	475 560 600	710 800 900	320 360 400	375 425 475	530 600 670	670 750 850	900 1000 1120	750 870 990	550 626 698	650 738 824	1600 1800 2000	850 950 1060	6310 6312 6314
OTC- 1000C OTC- 1120C OTC- 1250C OTC- 1400C	1000 1120 1250 1400	670 750 850 950	1000 1120 1250 1400	440 500 560 620	530 590 660 750	750 850 950 1060	950 1060 1180 1320	1250 1400 1600 1800	1120 1270 1420 1470	776 860 960 1100	918 1020 1140 1300	2240 2500 2900 2900	1180 1320 1500 1700	6316 6318 6320 6320

FEATURES High Efficiency, High Quality, Small Size and Light Weight.

APPLICATIONS Pneumatic Conveying, Air Supply, Cooling, Drying, Ventilation, Airslide, Chemical Industries, Cement Plants and Other Industries.

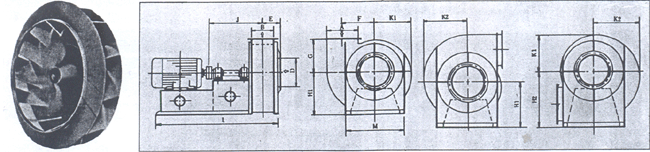

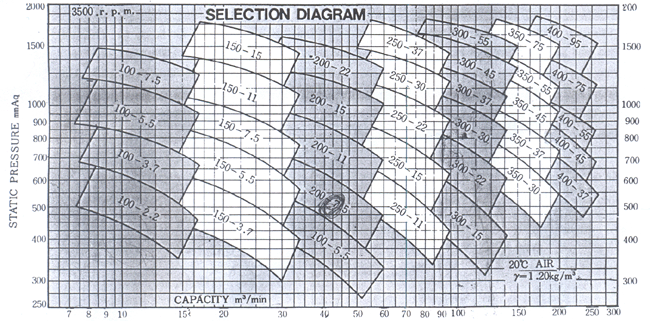

Dimensions

BLOWER SIZE	DIMENSIONS
OTC(D) - (KW)	A	B	C	E	F	G	H	I	J	K	L
OTC - 100-2.2	90	310	370	330	310	420	450	350	340	360	400
OTC - 100-3.7	90	350	405	369	351	450	500	387	360	380	430
OTC - 100-7.5	90	170	525	497	483	570	550	511	480	440	470
OTC - 150-3.7	100	320	400	340	310	440	500	370	320	400	440
OTC - 150-7.5	100	280	460	412	388	510	550	436	400	440	470
OTC - 150-15	100	490	570	534	516	620	600	552	520	450	480
OTC - 200-5.5	130	330	440	340	290	490	500	390	300	510	550
OTC - 200-11	130	370	475	403	367	530	550	439	380	540	580
OTC - 200-22	130	450	555	503	477	610	650	529	480	540	580
OTC - 250-11	170	360	490	386	334	550	550	438	360	580	620
OTC - 250-15	170	380	510	414	366	570	600	462	400	600	640
OTC - 250-22	170	400	530	445	400	590	650	488	480	630	670
OTC - 250-37	170	440	510	506	474	630	700	538	520	650	690
OTC - 300-15	170	370	530	410	350	580	650	470	400	680	730
OTC - 300-30	170	41	565	465	415	630	750	515	500	700	750
OTC - 300-45	170	450	605	525	485	670	800	565	560	730	780
OTC - 300-50	200	470	625	551	513	690	800	587	600	760	810
OTC - 350-30	200	410	590	462	398	660	750	526	640	700	750
OTC - 350-37	220	420	600	480	420	670	750	540	560	730	780
OTC - 350-55	200	440	620	520	470	690	800	570	600	790	840
OTC - 350-75	200	460	640	552	508	710	850	596	640	840	900
OTC - 400-37	200	400	605	180	410	670	750	540	580	780	840
OTC - 400-55	200	440	645	525	465	710	800	585	620	810	860
OTC - 400-75	200	440	645	541	489	710	850	593	650	840	900

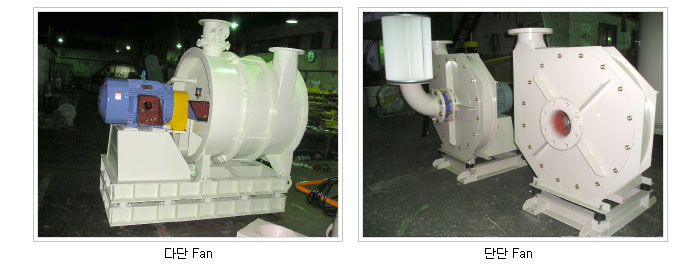

FEATURES High Efficiency, Rigid Constrction, Stable Performance.

APPLICATIONS Air Supply, Ventilation, Air Supply for Conveying Drying and Air Supply for Combustion Systems.

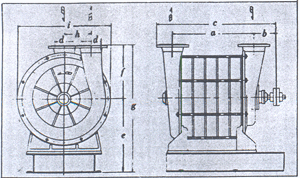

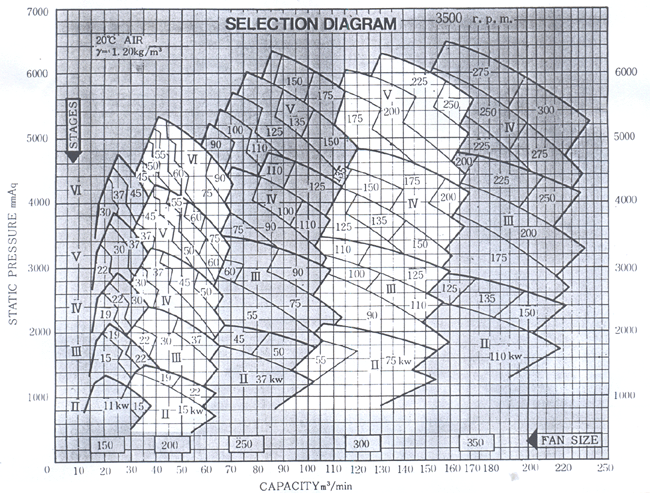

Dimensions

FAN SIZE	e	f	g	h	i
150	770	550	1320	270	955
200	770	550	1320	270	955
250	880	650	1530	270	1135
300	880	650	1530	270	1135
350	985	800	1785	330	1360

FAN SIZE	150						200
Number of stages	II	Ⅲ	Ⅳ	Ⅴ	Ⅵ	Ⅶ	Ⅱ	Ⅲ	Ⅳ	Ⅴ	Ⅵ	Ⅶ
a	305	420	535	650	765	880	345	465	585	705	825	945
b	245	245	245	245	255	255	230	230	230	230	240	240
c	690	805	920	1035	1160	1275	740	860	980	1100	1230	1350

FAN SIZE	250					300					350
Number of stages	II	III	Ⅳ	Ⅴ	Ⅵ	Ⅱ	Ⅲ	Ⅳ	Ⅴ	Ⅵ	Ⅱ	Ⅲ	Ⅳ	Ⅴ
a	455	620	785	950	1115	510	680	850	1020	1190	576	776	976	1176
b	280	290	290	300	300	250	260	270	270	270	506	506	506	506
c	935	1110	1275	1450	1615	982	1162	1342	1512	1682	1327	1527	1727	1927
